The fittings in combination with the appropriate material grade by the Buttweld Fittings manufacturer in India ensures a superior quality product. Furthermore, if the Seamless Pipe Fittings are produced under specification ASTM A403, they would be required to undergo a visual examination in addition to tension tests. Tension tests are a means to determine mechanical properties like yield and tensile strength by Stainless Steel Forged Fittings manufacturer. Typically, the forging process on these stainless steel products could be in conjunction with two or more procedures. The list of procedures used to forge the ASTM A403 Pipe Fittings include - upsetting, pressing, rolling, machining, hammering, piercing, extruding,  bending and fusion welding.

Check latest price list & dimensions of ASTM A403 Seamless Pipe Fittings

Buttweld Fittings Specification

Buy Stainless Steel Fittings in all sizes and thickness at best price ex Mumbai

Dimensions ANSI/ ASME B16.9, B16.9, MSS-SP-75
Types of pipe fittings Seamless / Welded / Fabricated fittings
Bending Radius R=1D, 1.5D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Wall thickness SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS available with NACE MR 01-75
Manufacturing Technics BUTT WELD /FOREGED
Sizes
  • ½" NB to 120" NB
  • Seamless ½” to 24”
  • Welded ½” to 120”
  • Two Joint / Two Halve Fittings 6” to 48”
Different types of BW Fittings Elbows, Tees, Reducers, Caps, Stub end, Cross, Long Radius Elbow, Short Radius Elbow, Bend, Long Radius Bends, Piggable Bends, Tee, Equal Tee, Reducing Tee, Cross, Reducer, Concentric Reducer, Con Reducer, Ecc Reducer, Eccentric Reducer, Pipe End Caps
Surface Finish Sand blasting, Sand Rolling, Sand Blasting
Applicable Standards
  • ASME B 16.9 for large Bore fittings
  • ASME B 16.11 for small Bore fittings (socket welded)
  • ASME B 16.25 for butt weld ends
  • ASME B 16.28 for small radius elbow
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, etc
Types of Fittings
  • Buttweld
  • Forged Fittings
  • Socket weld Fittings
  • Threaded Fittings
Outlet Fittings
  • 45 Deg Outlets
  • 90 Deg Outlets
  • Socket weld Outlets
  • Threading Outlets
  • Welding Outlets (Weldolet)
  • Nipple Outlets
  • Sweep Outlets

Types of Stainless Steel Buttweld Pipe Fittings

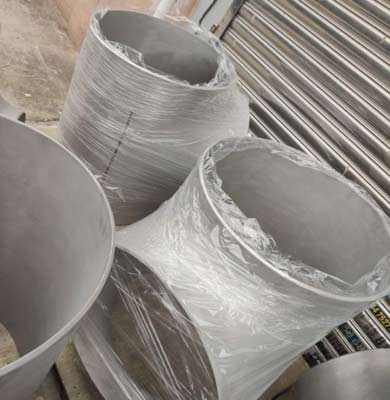

Stainless Steel Pipe Tee

Stainless Steel Pipe Tee

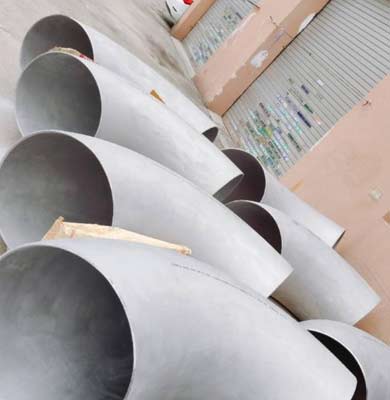

Stainless Steel Elbow

Stainless Steel Elbow

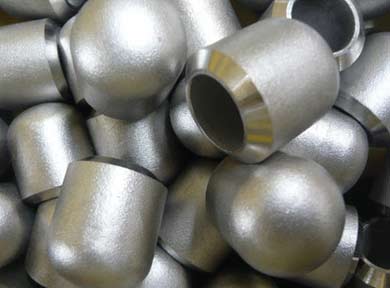

Stainless Steel Pipe Cap

Stainless Steel Pipe Cap

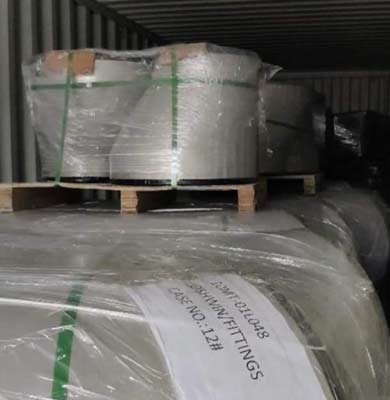

Stainless Steel Reducers

Stainless Steel Reducers

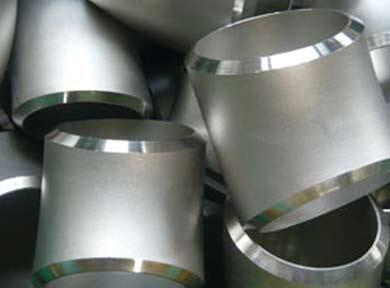

Stainless Steel 45 Degree Elbow

Stainless Steel 45 Degree Elbow

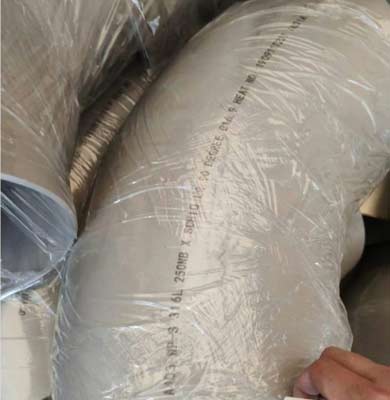

Stainless Steel 90 Degree Elbow

Stainless Steel 90 Degree Elbow

Buttweld Pipe Fittings available steel material

View online inventory of Buttweld Fittings in Stainless Steel, Titanium, Inconel, Copper Nickel, Hastelloy, Pure Nickel and Monel alloy

Stainless Steel Buttweld Fittings ASTM A403 WP316/ 316L, A774 WP-S, WP-W, WP-WX 304 /304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310, 310S, 317L, 321, 321H, 347, 347H, 410, 420, 446, 202, 904L, 254 SMO, Alloy 20 Etc.
Alloy Steel Fittings ASTM A234 / ASME SA234 Grade WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Fittings ASTM A 815, ASME SA 815 UNS NO S31803, S32205, S32750, S32950. Werkstoff No. 1.4462, Alloy 2205, 2507
Titanium Pipe Fittings Titanium Grade 1, Titanium Grade 2, Titanium Grade 4, Titanium Grade 5, Titanium Grade 7
ASTM  R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5
Copper Pipe Fittings T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Pipe Fittings ASTM / ASME SB 61 / 62 / 151 / 152, Copper Nickel 90/10 (C70600 ), Cupro Nickel (CuNi) 70/30 (C71500), UNS C71640
Brass Fittings 3602 / 2604 / H59 / H62 / etc.
Nickel Pipe Fittings ASTM B336 / ASME SB336, Nickel Alloy 200, Nickel 201, Nickel 205, Nickel 205LC
Inconel Fittings ASTM B336 / ASME SB336, Inconel Alloy 600, 601, 625, 718, 783, 690, x750
Monel Fittings ASTM B336 / ASME SB336, Monel Alloy 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Hastelloy Fittings ASTM B336 / ASME SB336, Hastelloy Alloy C276 (UNS N10276), C22 (UNS N06022), C4, C2000, B2, B3, X
Alloy 20 Fittings ASTM B336 / ASME SB336, Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium Pipe Fittings Aluminium grade 5052 /6061/ 6063 / 2017 / 7075 / etc.
Super Duplex Pipe Fittings S32750 / S32760 A815 Grade F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Fittings ASTM B336 / ASME SB336, Incoloy Alloy 800, 800H, 800HT (UNS N08800), 825 (UNS N08825), 925
254 Smo Fittings ASTM A403 / ASME SA403, SMO 254/6Mo, UNS S31254, DIN 1.4547
Nimonic Fittings Nimonic 75, Nimonic 80A, Nimonic 90
Other Fittings material Tin bronze, Alumunum bronze, Lead bronze
